| SDM Chassis Kit (Support SDM module) |
| System Size: 195W x 158D x 30H (mm) |
| KIOSK |
| Digital Signage |
| Menu Board / Video Wall |
A media display system kit, is designed for easy installation, upgrade and maintenance for large scale of digital signage applications in retail market.

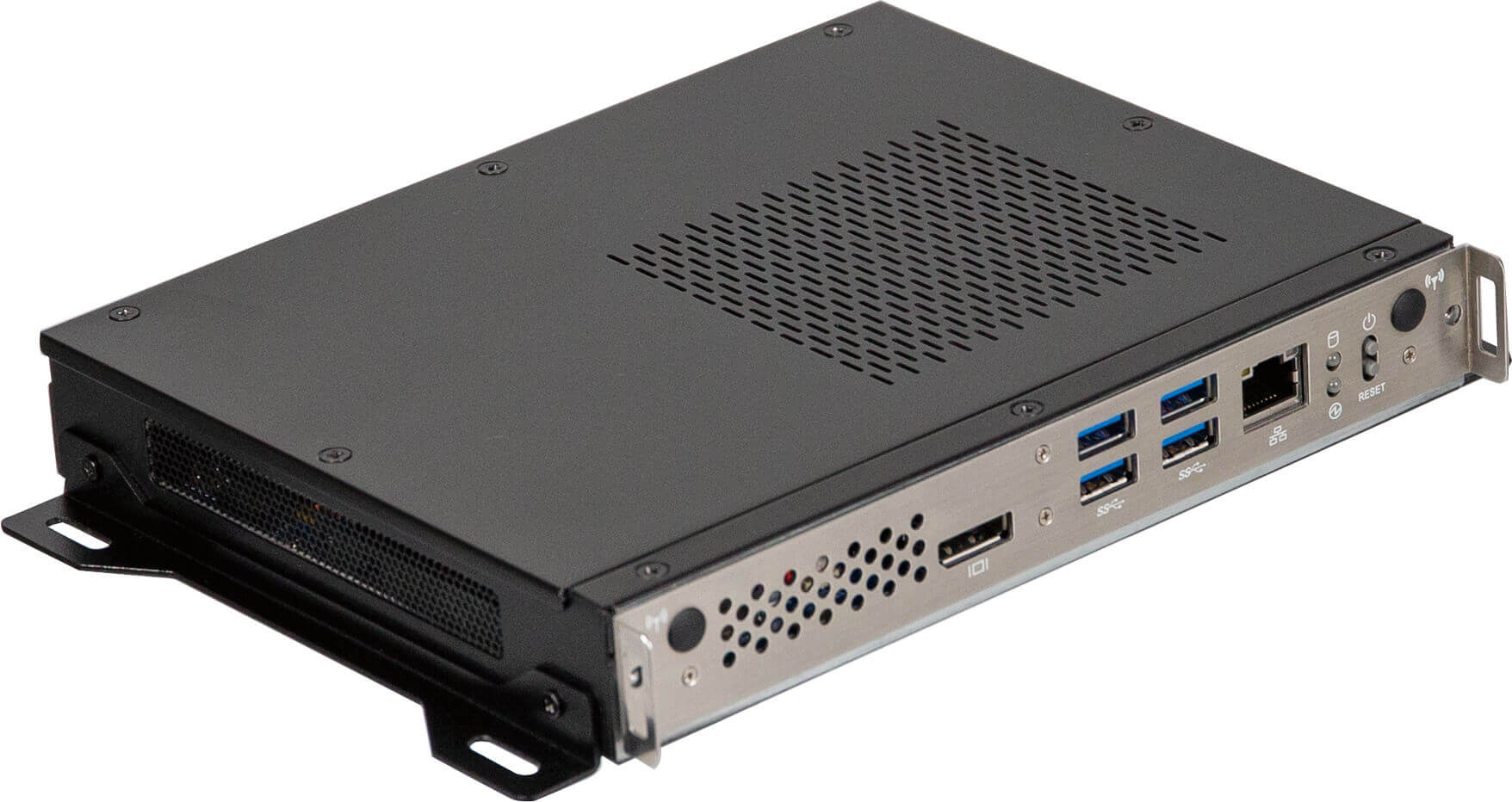

QBiX-Lite SDM Kits is one of the product line to be integrated with our Smart Display Module series, it's only 30mm in hight and extra light in weight to fit it any space-limited environment, or mount it on the back of display panel. With powerful Intel® SDM Support, it provides 2 to 3 independent display outputs of 4K resolutions with high computing performance and stability. Not only you can choose your preferred SDM module, but you can also upgrade and switch to a higher spec of SDM in the future without changing the whole digital signage equipment. SAVE COST and SAVE TIME!!!
| Dimension | 195W x 158D x 30H (mm) |
| CPU |
Support SDM module as follows: SDM-7300L (with Intel vPro support) SDM-7100L SDM-4000L SDM-3350L-HW SDM-3350L-QV |
| Memory | Depends on SDM module:
SDM-7300L (2 x DDR4 SO-DIMM sockets, Dual Channel 2133 MHz memory Module,
Max. Capacity 32 GB) SDM-7100L (2 x DDR4 SO-DIMM sockets, Dual Channel 2133 MHz memory Module, Max. Capacity 32 GB) SDM-4000L (2 x DDR4 SO-DIMM sockets, Dual Channel 2400 MHz memory Module, Max. Capacity 8 GB) SDM-3350L-HW (2 x DDR3L SO-DIMM sockets, Dual Channel 1866 MHz memory Module, Max. Capacity 8 GB) SDM-3350L-QV (2 x DDR3L SO-DIMM sockets, Dual Channel 1866 MHz memory Module, Max. Capacity 8 GB) |
| Ethernet | 1 x GbE LAN port |
| Graphic Support | Depends on SDM module:
SDM-7300L (1 x HDMI 2.0, 1 x Display Port, supporting a maximum resolution
of 4096x2160 @60Hz) SDM-7100L (1 x HDMI 2.0, 1 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz) SDM-4000L (1 x HDMI 2.0, 1 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz) SDM-3350L-HW (1 x HDMI 2.0, 1 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz) SDM-3350L-QV (1 x HDMI 2.0, 2 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz) |
| Audio | Intel Integrated Audio |
| Video | Integrated in the SoC - Intel®HD Graphics 505 2 x HDMI ports, supporting a maximum resolution of 3840x2160@30 Hz * Support for HDMI 1.4b version |
| Audio | Realtek ALC255 |
| Storage | Depends on SDM module: SDM-7300L (--) SDM-7100L (--) SDM-4000L (1 x eMMC 32GB) SDM-3350L-HW (1 x eMMC 32GB) SDM-3350L-QV (1 x eMMC 32GB) |
| Rear I/O | 1 x DC-in 2 x HDMI 2 x RJ45 1 x RJ45 type COM (RS485 / 232) |
| Expansion slots | 1 x 2280 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-key (WiFi/BT) |
| Order Information | 6BSD4000AMR-SI |
| Rear I/O | 1 x USB 3.0 1 x Display Port (Co-lay with front Display port) 1 x HDMI 1 x UART 1 x DC-Jack 1 x 2x2 Power connector |
| Power | DC +12V/+19V/+24V (Adapter 19V/65W ) |
| Operating temperature | Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -20°C to 70°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
| Vibration During Operation | Operation: IEC 60068-2-64, 1 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With
SSD/M.2 2242 Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
| Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Packaging Content | Box Packing Capacity: 10 Carton size: 25AC0-400000-Y1R (464x376x367mm) Content: Bracket for Wall Mount x 2 : 25HB1-SD4000-R0R PSU ADP 19V 65W 100-240VAC x 1 : 25EP2-10065Q-A3S Power Cord : Optional (by region) |
