| VTW-22AR | |
|---|---|
| Panel Compatibility | Compatible with FHD,UXGA,XGA,SVGA,VGA resolution TFT LCD panel from various panel manufactures by changing some jumpers setting and spedified BIOS. |
| Color | Up to 8 bits per color,total 16.7M colors |
| Resolution Supported | VGA,SVGA,XGA,UXGA & FHD VESA standard |
| Input Source | D-sub RGB,DVI-I (DVI+VGA) |
| User Controls | Power ON/OFF OSD Menu Adjust - Adjust + Auto (exit) |
| Board Dimension | 170 x 95 mm |
| Video Output | Dual-LVDS interface |
| Voltage for LCD Panel | 5V, 3.3V DC |
| Touch Panel interface | RS232 or USB |
| Input Voltage | DC 12V or DC 24V |
| Storage Temperature Limits | Temperature -20 ℃~ 60 ℃ |
| Operation Temperature Limits | Temperature 0 ℃~ 50 ℃ Humidity: Less than 85% |

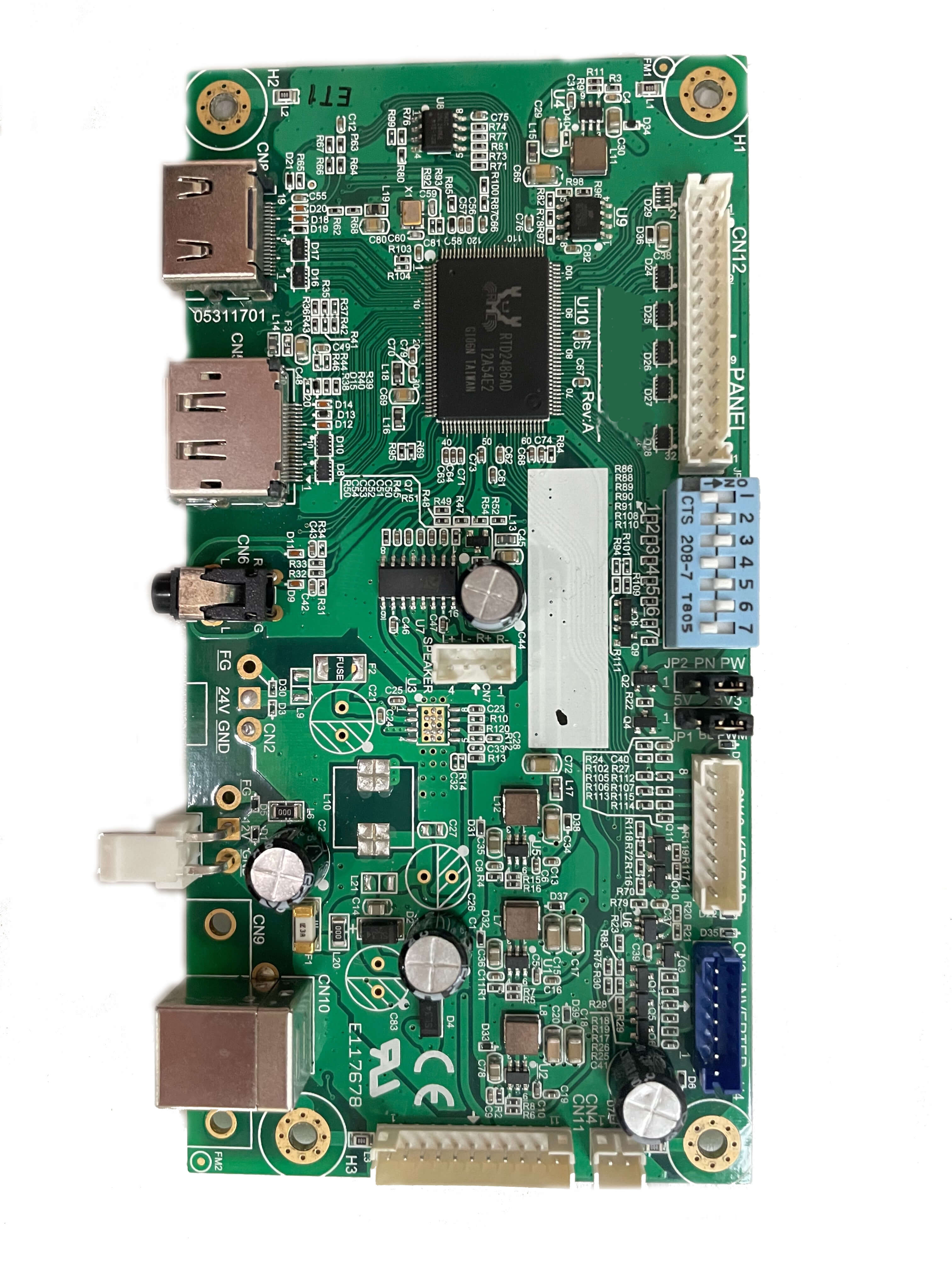

| VTW-25AX | |
|---|---|
| Panel Compatibility | Compatible with FHD,UXGA,XGA,SVGA,VGA resolution TFT LCD panel from various panel manufactures by changing some jumpers setting and spedified BIOS. |
| Color | Up to 8 bits per color,total 16.7M colors |
| Resolution Supported | VGA,SVGA,XGA,UXGA & FHD VESA standard |
| Input Source | DisplayPort, HDMI |
| User Controls | Power ON/OFF OSD Menu Adjust - Adjust + Auto (exit) |
| Board Dimension | 205 x 85 mm |
| Video Output | Dual-LVDS interface |
| Voltage for LCD Panel | 5V, 3.3V DC |
| DisplayPort Loop Out | Support SST & MST mode |
| Touch Panel interface | RS232 or USB |
| Input Voltage | DC 12V |
| Storage Temperature Limits | Temperature -20 ℃~ 60 ℃ |
| Operation Temperature Limits | Temperature 0 ℃~ 50 ℃ Humidity: Less than 85% |

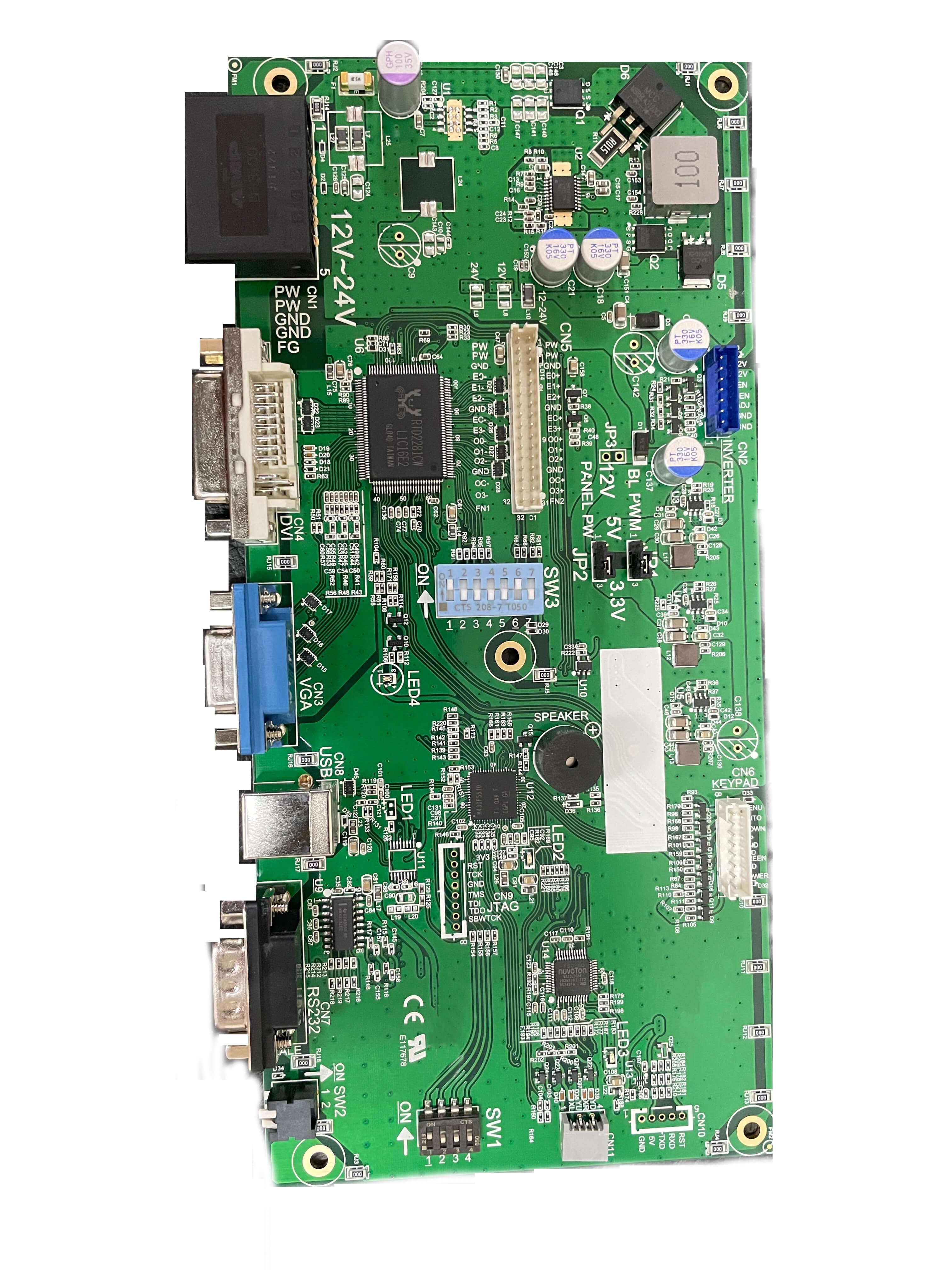

| VTW-22AS | |
|---|---|
| Panel Compatibility | Compatible with FHD,UXGA,XGA,SVGA,VGA resolution TFT LCD panel from various panel manufactures by changing some jumpers setting and spedified BIOS. |
| Color | Up to 8 bits per color,total 16.7M colors |
| Resolution Supported | VGA,SVGA,XGA,UXGA & FHD VESA standard |
| Input Source | D-sub RGB, DVI-I (DVI+VGA) |
| User Controls | Power ON/OFF OSD Menu Adjust - Adjust + Auto (exit) |
| Board Dimension | 210 x 100 mm |
| Video Output | Dual-LVDS interface |
| Voltage for LCD Panel | 5V, 3.3V DC |
| Touch Panel interface | RS232 or USB |
| Input Voltage | DC 12V ~ DC24V ± 10% |
| Storage Temperature Limits | Temperature -20 ℃~ 60 ℃ |
| Operation Temperature Limits | Temperature 0 ℃~ 50 ℃ Humidity: Less than 85% |
| VTW-24G | |
|---|---|
| Panel Compatibility | Compatible with FHD,UXGA,XGA,SVGA,VGA resolution TFT LCD panel from various panel manufactures by changing some jumpers setting and spedified BIOS. |
| Color | Up to 8 bits per color,total 16.7M colors |
| Resolution Supported | VGA,SVGA,XGA,UXGA & FHD VESA standard |
| Input Source | D-sub RGB, DVI-I (DVI+VGA) |
| User Controls | Power ON/OFF OSD Menu Adjust - Adjust + Auto (exit) |
| Board Dimension | 140 x 71 mm |
| Video Output | Dual-LVDS interface |
| Voltage for LCD Panel | 5V, 3.3V DC |
| Touch Panel interface | RS232 or USB |
| Input Voltage | DC 12V |
| Storage Temperature Limits | Temperature -20 ℃~ 60 ℃ |
| Operation Temperature Limits | Temperature 0 ℃~ 50 ℃ Humidity: Less than 85% |
| VTW-325PIP | |
|---|---|
| Panel Compatibility | Compatible with FHD,UXGA,XGA,SVGA,VGA resolution TFT LCD panel from various panel manufactures by changing some jumpers setting and spedified BIOS. |
| Color | Up to 8 bits per color,total 16.7M colors |
| Resolution Supported | VGA,SVGA,XGA,UXGA & FHD VESA standard |
| Input Source | D-sub RGB, DVI-I (DVI+VGA) |
| User Controls | Power ON/OFF OSD Menu Adjust - Adjust + Auto (exit) |
| Board Dimension | 140 x 71 mm |
| Video Output | Dual-LVDS interface |
| Voltage for LCD Panel | 5V, 3.3V DC |
| Touch Panel interface | RS232 or USB |
| Input Voltage | DC 12V |
| Storage Temperature Limits | Temperature -20 ℃~ 60 ℃ |
| Operation Temperature Limits | Temperature 0 ℃~ 50 ℃ Humidity: Less than 85% |
